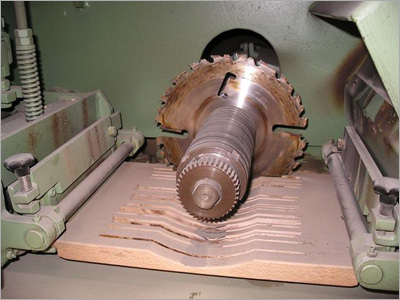

Raimann Multi Rip Saw Second Hand

Raimann Multi Rip Saw Second Hand
Raimann Multi Rip Saw Second Hand
Product Code : KS 230
Product Description

Raimann Multi Rip Saw :

Persistently marching in today's competitive market, our company has been able to mark its strong presence in the market as one of the well equipped suppliers and exporters of raimann Multi Rip Saws . Widely appreciated for their superior performance and less power consumption, these are available in various specifications. At our vendor's end, these Raimann Rip Saws  machines are manufactured by using excellent quality materials and upgraded technology. Our team of quality inspectors checks the whole range on premium quality parameters for ensuring that only top notch quality machines are delivered at the clients end.

Specifications:

Machine number

2332

Name

Multi Rip Saw

Type

KS 230

Manufacture is an used Machine.rer

Raimann

Multi Rip Saw make Raimann type KS 230

Description:

  • Cutting height - max. free opening at saw blade diameter max. 360 mm

  • Cutting height without pressure rack max. 120

  • Cutting height with pressure rack max. 110 mm

  • Shortest wood length without pressure rack 750 mm

  • Shortest wood length with pressure rack 490 mm

  • Pressure rack thickness in shallow pit 15 mm

  • Saw blade diameter 300 mm

  • Cutting height without pressure rack 95 mm

  • Cutting height with pressure rack 80 mm

  • Shortest wood length without pressure rack 750 mm

  • Pressure rack thickness in shallow pit 15 mm

  • Intermediate ring diameter 90 mm

  • Saw blade diameter 250 mm

  • Cutting height with pressure rack 45 mm

  • Shortest wood length 490 mm

  • Rack thickness in shallow pit 15 mm

  • Intermediate ring diameter 90 mm

  • Shortest wood length at saw blade diameter 300 mm

  • With steel pressure rack 340 mm

  • Rotation 3200 - 4500 rpm

  • Feed speed 8-35 m/min.

  • Feed gear 1,1 KW

  • Saw motor 22 KW

  • Clamping width of saws 230 mm

  • Width of conveyor chain 250 mm

  • Throat from middle of chain to console approx. 460 mm

  • Working height 900 mm

  • Table width left from chain approx. 300 mm

  • Table width right from chain approx. 250 mm

  • Table length 1740 mm

  • 2 x laser light
